Navigating High-Stakes Security with Precision: An In-Depth Look at the ThreatScan®-LS1 Portable Real-Time X-Ray Scanning System
In critical security operations—whether conducting explosive ordnance disposal (EOD) evaluations, carrying out counter-surveillance sweeps, or intercepting contraband at customs checkpoints—seconds count. First responders and tactical operatives face unpredictable, high-risk environments where hidden hazards cannot be left to chance. To meet these rigorous operational demands, the ThreatScan®-LS1 was engineered directly in cooperation with field operatives and EOD specialists.
Combining a large-format, ultrathin detector panel with exceptional penetration and intelligent image processing software, the ThreatScan®-LS1 sets a high benchmark for field-deployable real-time X-ray inspection systems
What is the ThreatScan®-LS1?
The ThreatScan®-LS1 is a lightweight, portable, battery-powered real-time X-ray scanning system designed for rapid deployment and high-precision tactical inspections. The system operates on an intuitive, linear scanning workflow:

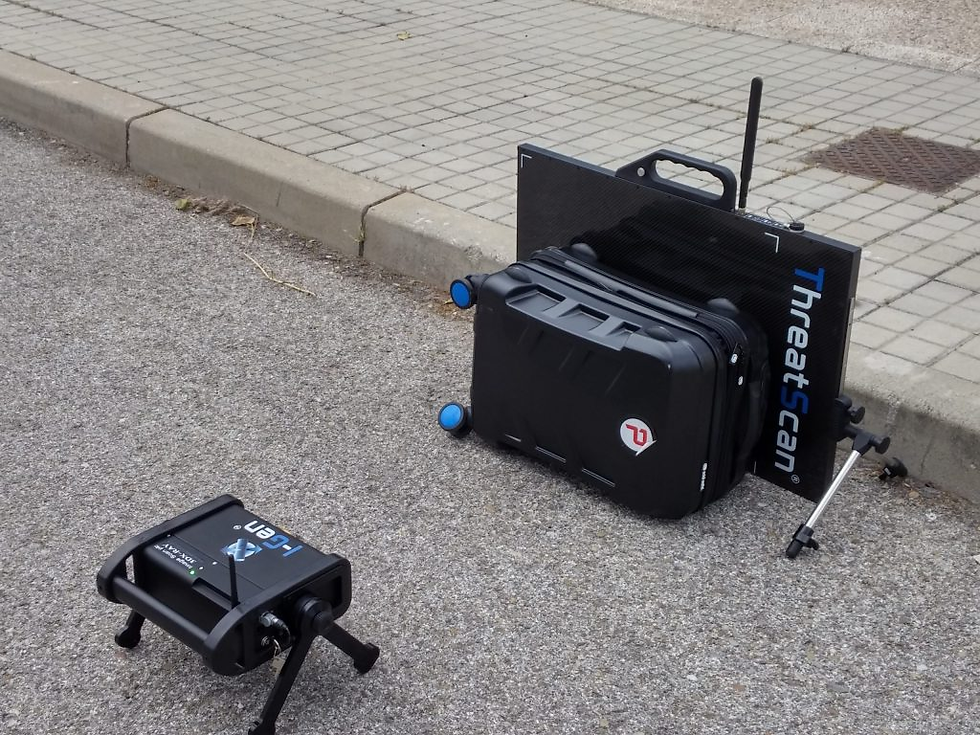

Deployment: The slim detector panel is positioned directly behind the target object, while the compact X-ray generator is aligned in front.

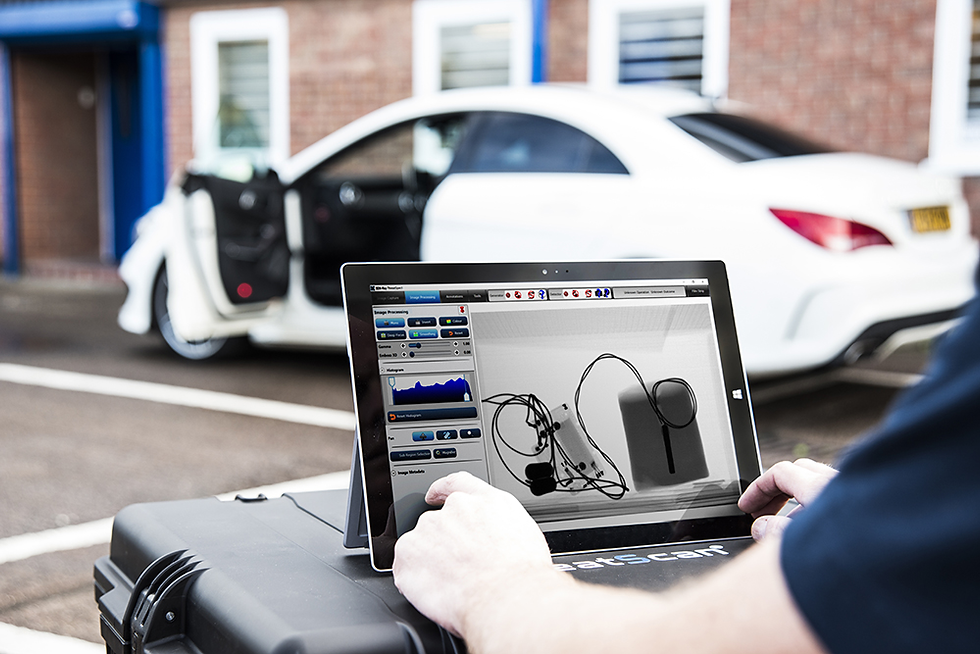

Activation: The operator initiates the scan remotely via a laptop imaging station over secure wireless or cabled links.
Real-Time Analysis: Within 5 seconds, high-resolution X-ray images are captured and rendered on the control station for immediate interpretation and action.
The standard system package includes a large-format X-ray detector panel, a 120kV X-ray generator, a ruggedized laptop imaging station loaded with ThreatSpect software, long-life lithium-ion batteries, chargers, wireless communication gear, and rugged transport cases.
2. Key Operational Advantages & Features
Large-Format Imaging Area in a Single Pass
One of the main challenges with conventional portable X-ray detectors is their limited field of view, which often requires multiple overlapping scans to evaluate a single package. The ThreatScan®-LS1 addresses this with an expansive 600mm x 460mm imaging area. This large format enables operators to scan typical bags, luggage, and suspicious packages completely in a single shot, dramatically reducing exposure time and tactical risk.
Low-Profile "Floor-Level" Scanning
Hazards are rarely placed conveniently at eye level. The LS1 panel features an ultra-thin form factor (25mm depth) and is specifically engineered to scan down to 3mm above floor level. This capability is critical when inspecting suspect items left directly on the ground, under low-clearance vehicles, or flush against walls.
Deep Steel Penetration & Sub-Millimetre Resolution
Equipped with a 120kV constant potential X-ray generator and a 400-micron, 1152-pixel diode array detector, the system achieves sub-millimetre resolution (down to 40AWG wire detection). It penetrates 30mm of steel guaranteed (34mm typical) at 120kV and can even image through up to 25cm of concrete, making it powerful enough to reveal intricate wiring, detonators, hidden compartments, and organic contraband encased inside heavy shielding or structural elements.
3. ThreatSpect Software: Advanced Analytics at Your Fingertips

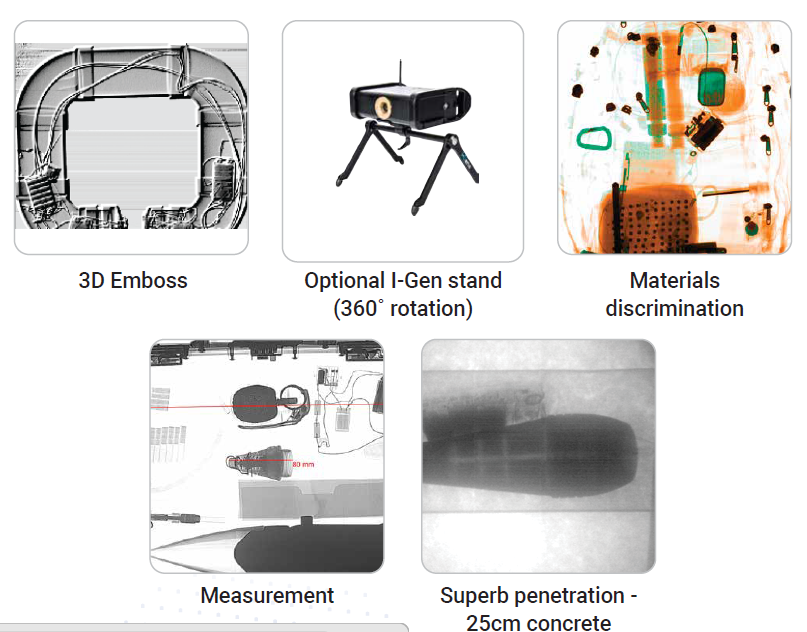

Hardware performance is only half the equation; rapid decision-making relies on image clarity and analytical tools. The ThreatScan®-LS1 operates via ThreatSpect software, a user-friendly, feature-rich suite optimized for tactical image processing:
Materials Discrimination: Differentiates between organic and inorganic substances, instantly highlighting explosives, narcotics, or metallic components using standard, inverted, or false-color palettes.
DeepFocus™ & 3D Emboss: Enhances subtle contrast variations, allowing operators to visualize complex internal structures in pseudo-3D perspective.
Sub-Range & High-Contrast Enhancement: Filters out background noise to isolate fine wires, microscopic circuit traces, and low-density materials.
Image Stitching & Multi-Format Support: Allows stitching of multiple scans for extra-large targets and exporting/importing standard formats (e.g., JPEG) for seamless reporting.
On-Screen Measurement & Annotation: Enables precise physical measurements of components directly on screen, alongside custom threat labeling.
Remote Command Connectivity: Real-time data sharing enables the laptop imaging station to transmit live imagery to remote command centers for advisory consultations.
4. Key Applications Across Defense & Security Sectors
The versatility and rugged build of the ThreatScan®-LS1 make it an invaluable asset across multiple operational domains:
Sector / Mission | Operational Value |
EOD & Bomb Squads | Rapid identification of Improvised Explosive Device (IED) triggers, power sources, detonators, and concealed circuitry. |
Counter-Surveillance (TEMPEST / TSCM) | Inspection of furniture, walls, office equipment, and electronics to detect hidden listening devices, taps, and bugging equipment. |
Customs & Border Control | Non-destructive inspection of vehicle panels, fuel tanks, bulkhead pipes, and cargo shipments for smuggled narcotics, weapons, or illicit goods. |
First Responders & Tactical Teams | Immediate clearance of unattended baggage and suspicious items at public venues, transit hubs, government facilities, and VIP events. |
5. Detailed Technical Specifications
Detector Panel (LS1)
Technology: Linear photo-diode array
Resolution: 1152 pixels, 40AWG, 400 micron
Dynamic Range: 65,536 grey levels (16-bit)
Scan Speed: Fast 5-second image acquisition
Imaging Area: 600mm x 460mm (scans to 3mm above floor level)
Dimensions & Weight: 753mm x 478mm x 25mm; 5kg panel weight (5.5kg with handle & battery)
Power Supply: Rechargeable internal Lithium-Ion battery (8-hour standby capacity)
Environmental Rating: Operating range -20°C to +55°C (MIL-STD-810F 501.4 & 502.4 compliant); 0% to 95% non-condensing humidity
X-Ray Generator (I-Gen)
Generator Type: 1mA constant potential, adjustable 40kV to 120kV
Focal Spot & Beam Angle: 3.5 x 0.5 mm focal spot 40x40 Degrees beam angle
Steel Penetration: 30mm guaranteed, 34mm typical
Dimensions & Weight: 245mm x 180mm x 80mm; 5.5kg (6.5kg with battery and handle)
Power & Endurance: Rechargeable 2500mAh cells providing up to 225 images per 2-hour charge; mains power option available
Safety Features: Audible and visible warnings, physical safety interlock, key switch, CE compliant
Connectivity, System Options, & Certifications
Wireless Protocol: Standard 802.11 a/b/g/n wireless up to 120m range (extendable via optional repeater stations).
Cabled Options: Optional 25m/50m Ethernet or 100m/150m/200m fibre optic cable spools for high-RF or high-hazard environments.
Accessories: 360° rotating I-Gen tripod stand, soft carry cases, tablet controllers with multi-touch support.
NATO Codification: NSN 6350-99-464-9827.
Conclusion
The ThreatScan®-LS1 bridges the gap between field portability and high-level X-ray diagnostics. By offering a large scanning envelope, sub-millimetre resolution, deep steel penetration, and intuitive ThreatSpect software, it gives first responders, EOD technicians, and security officers the actionable intelligence required to neutralize threats quickly and safely
