Next-Generation Portable X-Ray Security: Inside the ThreatScan® AS1-XRS3
In fast-paced tactical environments, security operatives, EOD teams, and first responders require immediate, clear, and actionable intelligence to assess potential threats safely. Traditional scanning methods can be bulky, slow to deploy, or suffer from poor image clarity.
Enter the Godrej ThreatScan® AS1-XRS3—a lightweight, portable, real-time amorphous silicon X-ray scanning system designed to meet dynamic security challenges with speed, precision, and reliability.
What is the ThreatScan® AS1-XRS3?
The ThreatScan® AS1-XRS3 is a high-performance, real-time X-ray inspection unit. Engineered for quick field deployment, the system pairs a slimline Amorphous Silicon (AS1) detector panel with the powerful Golden XRS3 X-ray generator and the feature-rich ThreatSpect software suite running on a ruggedized imaging station.
Whether evaluating suspicious packages, executing counter-surveillance operations, or clearing explosive ordnance, the ThreatScan® AS1-XRS3 provides sub-millimeter resolution images instantly, allowing operatives to make critical decisions without delay.
Key System Components

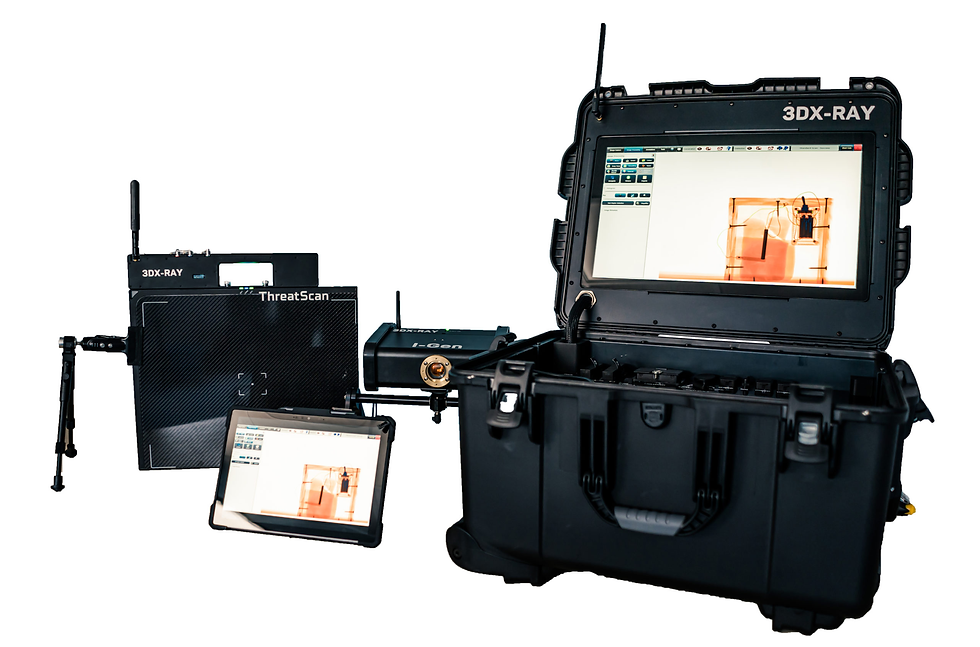

The complete standard ThreatScan® AS1-XRS3 package provides everything needed for rapid deployment in the field:
Amorphous Silicon Detector Panel (AS1): A durable, slimline detector with an active imaging surface capable of high-penetration imaging.
X-Ray Generator (Golden XRS3): A compact, battery-powered 270kVp pulse generator built to penetrate tough shielding materials.
Laptop/Tablet Imaging Station: A high-performance command unit running Windows and equipped with ThreatSpect image processing software.
Power & Communication Gear: Self-contained rechargeable lithium-ion cells, smart chargers, and high-speed wireless connectivity.
Transport Case: Heavy-duty carrying solution for secure transportation and field readiness.
Core Features & Advantages
1. Large Single-Scan Field of View
Featuring a 35x43cm(14"x 17") active area, the detector panel allows security personnel to inspect standard bags, backpacks, and packages in a single scan. With only 5mm of dead space on the bottom and right edges, edge-to-edge detection capabilities are significantly enhanced.
2. High-Resolution Real-Time Imaging
Equipped with a 13.5 Megapixel resolution (4070x3280 pixels) and a 16-bit dynamic range, the system produces crisp, sub-millimeter detail (4.5 lp/mm). This capability allows operators to clearly identify fine wires, detonators, and subtle anomalies hidden within complex structures.
3. Rugged Field-Ready Construction
Designed for harsh operating conditions:
IP67 Rating: Complete protection against water ingress and dust infiltration.
Drop Tested: Rated to withstand a 1-meter drop.
Load Bearing: Supports point loads up to 150kgf and overall loads up to 300kgf
Temperature Resistance: Operates reliably from -20 to + 55 Degrees
4. Advanced ThreatSpect Image Analysis Software
The system’s imaging station features intuitive software loaded with analytical capabilities:
Materials Discrimination & 3D Emboss: Helps separate organic and inorganic components quickly.
DeepFocus™ & Image Stitching: Combines images or focuses on high-density layers for enhanced clarity.
Annotation & Measurement Tools: Enables precise on-screen distance measurement and threat marking.
Flexible Export Options: Saves images in secure TSM formats or standard JPEG/image file types for immediate sharing.
Specification Category | Parameter / Detail |
Detector Type | Amorphous Silicon (AS1) |
Detector Resolution | 13.5M pixels | 4070x3280 pixels | 4.5 lp/mm |
Active Scan Area | 35x43cm(14"x 17") |
Panel Dimensions & Weight | 468 x 378 x 15 mm | 3.7 Kg |
X-Ray Generator Max Energy | 270 kVp (Golden XRS3) |
Generator Weight & Size | 5.4 Kg 392 x 108 x 48 mm |
Wireless Range | Standard 802.11g up to 120m (extendable via repeaters) |
Optional Connections | Fiber Optic (100m, 150m, 200m), Ethernet (25m, 50m) |
Certifications | CE Compliant |
NATO Stock Number (NSN) | 6350-99-959-6054 |
Primary Applications & Target Users
The flexibility and rapid setup of the ThreatScan® AS1-XRS3 make it suitable for a wide range of critical missions:
EOD / Bomb Disposal Teams: Safe identification of IED components, circuit boards, and firing mechanisms.
First Responders & Police: Rapid screening of unattended baggage in public transport hubs or venues.
Counter Surveillance Operatives: Detection of hidden electronic bugging devices, micro-cameras, and eavesdropping equipment in secure rooms.
Customs & Border Control: Inspection of vehicle panels, contraband hidden in goods, and illicit cargo.
Military & Defense Agencies: Critical asset protection and field intelligence operations.
Conclusion
When safety, speed, and image clarity cannot be compromised, the Godrej ThreatScan® AS1-XRS3 stands out as a dependable, versatile, and high-performance scanning tool. Its combination of robust hardware, real-time high-resolution imaging, and advanced threat analysis tools makes it an indispensable asset for security professionals worldwide.
