Securing the Skies: An In-Depth Look at the CHIMERA Portable & Integrated Anti-Drone Solution
In an era where unmanned aerial vehicles (UAVs) and commercial drones are increasingly accessible, airspace security is no longer restricted to high-altitude military defence. From critical infrastructure and public gatherings to border security and tactical field operations, rogue drones present a growing threat to privacy, safety, and security.
To address these dynamic threats, Godrej, in partnership with Cerbair, introduced CHIMERA—a cutting-edge, highly mobile, and integrated anti-drone system designed to serve as the ultimate "Swiss Army knife" for security operators.
What is CHIMERA?
CHIMERA is a fully portable, integrated, and modular Counter-Unmanned Aerial System (C-UAS). Engineered for maximum operational flexibility, CHIMERA equips field operators with passive detection, direction finding, and active RF jamming—all housed in a lightweight, tactical form factor that can be deployed on a vest, carried by hand, or transported in field-ready rugged cases.
Key Features & Component Breakdown
CHIMERA integrates three primary tactical units: the Manpack (Detection & Core), the Rugged Smartphone (Command & Control), and the Effector (Direction Finding & Jamming).
1. The Manpack: Passive Omni-Directional Detection
The core engine of CHIMERA is the tactical Manpack, designed to fit comfortably onto a military or law enforcement tactical vest.
Omni Detection Range: Passive detection up to 1 km.
RF Spectrum Action: Operates across the primary drone communication bands (2.4 GHz and 5.8 GHz).
Passive Operation: Because the detection mechanism is purely passive, CHIMERA does not emit signals during detection, keeping the operator hidden from enemy RF direction-finders.
Form Factor & Weight: Compact dimensions 28x 31x 8.5 cm and lightweight 8 kg.
Rugged Standards: Built to harsh military specifications—certified IP65 (dust/water ingress) alongside MIL-STD-810G and MIL-STD-461G.
Operating Temperature: Built for extreme environments, ranging from -20 to + 49 Degrees
Power & Hot-Swap Support: Powered by militarized Lithium-Ion batteries featuring hot-swap compatibility (allowing battery replacement without powering down the system). Battery endurance provides 4 hours of continuous detection or 1 hour of active jamming.
Audio Alerts: Equipped with a dedicated jack port and tactical earpiece for discrete audio alarms when a drone threat is detected.
2. Command & Control: Rugged Tactical Controller
CHIMERA provides real-time situational awareness through a hardened tactical smartphone user interface mounted directly to the operator's chest or sleeve.
Display & Control: Tactile interface running on a customized, secure Android system.
Rugged Protection: Rated IP68 (submersible up to 1.5m) and housed in an Armor-Mounted 5 Series / Juggernaut Sleeve for drop and impact protection.
Dimensions & Weight: Ultra-lightweight at just 400 g with dimensions of 187x95x20 mm
Operating Range: 0 to 35 Degrees Celcius
3. The Effector: Direction Finding & Jamming Neutralization
When a threat is detected, the handheld Effector enables the operator to locate and neutralize the target drone.
Direction Finding & Neutralization Range: Effective up to 2 km.
Action On RF Spectrum: Handles dual-band directional detection 2.4 GHz / 5.8 GHz and multi-band neutralization 2.4 GHz / 5.8 GHz, and GNSS/GPS satellite navigation signals).
Weight & Portability: Weighs only 5 kg, making it easy to carry via sling or hold during targeted jamming operations.
Manual Activation & Degraded Mode: Integrated control panel with quick-activation keys, allowing operation even in degraded or heavily jammed environments.
Standards: Certified to MIL-STD-810G and MIL-STD-461G, operating between -20 to 49 Degrees Celcius
How CHIMERA Neutralizes Rogue Drones
Understanding the science behind RF jamming is crucial to modern anti-drone tactics. Drones rely on three core radio links:
Uplink: Command signals sent from the remote control to the drone.
Downlink: Video feeds and telemetry data sent from the drone back to the controller.
GNSS (Global Navigation Satellite System): Navigation data received from satellite networks (GPS, GLONASS, Galileo).
Operational Impact of Jamming
When CHIMERA’s Effector activates jamming, it overwhelms these critical communications. Depending on the drone's pre-programmed fail-safe procedures, the intrusion is mitigated instantly:
If Uplink/Downlink is severed: The drone executes its pre-configured protocol—typically Return to Home (RTH), Hovering, or Immediate Safe Landing.
If GNSS is also saturated: The drone loses its position coordinates and cannot Return to Home. Consequently, it triggers an immediate, safe vertical landing on the spot, neutralizing the threat without kinetic destruction.

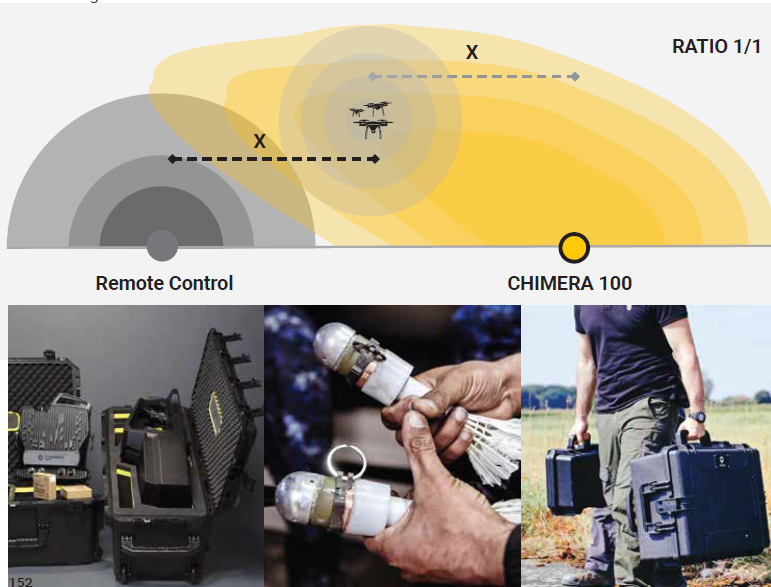

Note on Operational Range: Neutralization distances vary based on real-world environmental factors, including the distance ratio between CHIMERA, the drone, and the pilot controller, local RF pollution, topography, structures, and atmospheric conditions. Under optimal 1:1 ratio conditions, neutralization occurs effortlessly.
Complete Accessory Ecosystem & Modular Upgrades
To ensure seamless tactical mobility and mission readiness, CHIMERA includes a full suite of military-spec accessories:
Category | Component | Description & Key Specs |
Tactical Gear | Tactical Vest | Made from ultra-durable Nylon 500D (water-resistant). Features dual SAPI armor plate slots, MOLLE attachments, and a GrabDrag handle. |
Mounting | MOLLE Conversion Plate | Allows quick-release attachment of the Manpack directly onto tactical vests. Includes MOLLE clips and an Effector carry sling. |
Power Options | Standard Battery (BT-70757BV) | US DoD Certified Li-Ion 24V / 3.4Ah, weighing 0.54 kg |
Extended Power | Long Endurance Battery (BB-2590/U) | US DoD Certified Li-Ion 24 V/ 7.5 Ah, weighing 1.40kg for long-duration missions. |
Charging | Single & Multi-Chargers | BTC-70791-MR 100-240 Vac and heavy-duty Multi-Battery Charger (BTC-70819-1) supporting multi-voltage DC/AC inputs. |
Transport | Rugged Pelican Transport Cases | Hard-shell, foam-lined tactical cases for secure storage and transport of the complete system. |
Maintenance | Data & Audio Cables | Includes earpiece for discrete audio alarms and maintenance cables for field remote updates. |
Why Choose CHIMERA?
Integrated All-in-One Defense: Detection, direction finding, and jamming combined into a single portable system.
Dynamic Operational Deployment: Wearable as a manpack or operable from stationary positions and vehicles.
Passive Detection Safety: Operates stealthily without revealing operator location.
Military-Grade Durability: Fully compliant with US DoD, IP65/68, and MIL-STD standards.
Conclusion
Whether protecting high-profile personnel, safeguarding critical infrastructure, or providing tactical field security, the Godrej & Cerbair CHIMERA delivers reliable, military-grade anti-drone protection in an agile, field-ready package.
