Mini Remotely Operated Vehicle | Godrej Security Solutions
Mini Remotely Operated Vehicle: A Complete Guide to Our Explosive Ordnance Disposal Robot
Introduction: Putting Distance Between People and Danger
The Mini Remotely Operated Vehicle (Mini ROV) is a compact, 47 kg Explosive Ordnance Disposal (EOD) robot that lets bomb-disposal teams inspect and handle suspect objects from up to 1 km away. It combines a tracked chassis, a multi-axis robotic arm, a day/night PTZ camera with 20x optical zoom and an integrated disruptor mount in a single weatherproof platform.
Every EOD operation follows one guiding principle: keep the human out of the hazard zone. Each metre of stand-off distance between a technician and a suspect device reduces the risk to life. Remotely operated vehicles turn that principle into practice. The robot goes forward to look, assess and act, while the operator stays behind cover with a live video feed and full control.
The Mini ROV is built for exactly that role. It is small enough to move through corridors, aircraft aisles, terminal buildings and vehicle bays, yet capable enough to climb slopes, carry tools and work in harsh outdoor conditions. It serves defence forces, police and paramilitary units, airport security teams and oil & gas installations.
In this guide, we walk through every feature of the Mini ROV, explain what each one means on an actual mission, and show where the platform delivers the most value.
Key Features Explained
The Mini ROV packs eight core capabilities into one platform. Each one solves a specific problem that bomb-disposal teams face in the field.
1. Highly Maneuverable Tracked Platform
The Mini ROV runs on rubber tracks instead of wheels. Tracks spread the robot's weight over a larger contact area, giving it steady grip on loose soil, gravel, wet surfaces, polished terminal floors and rubble.
The platform also uses articulating front flippers (track arms). These can be raised or lowered to lift the nose over kerbs and obstacles, climb stairs and slopes, and stabilise the robot on uneven ground. Combined with a compact footprint, the robot can turn within tight spaces such as building corridors, parking lots and between rows of seats.
Why it matters: Suspect objects are rarely left in convenient places. A robot that can reach them over obstacles, up ramps and through narrow passages means fewer situations where a technician has to approach on foot.
2. Powerful Multi-Axis Robotic Arm
The heart of any EOD robot is its manipulator arm. The Mini ROV's arm has multiple joints (axes), which lets it reach forward, up, down and around obstacles, then position its gripper precisely on a target.
The arm ends in a gripper (end effector) that can grasp, lift, open, move and reposition objects. Operators can use it to pick up a suspicious bag, open a car door or boot, move debris aside, or carry a package to a safer location.
Why it matters: Fine, controlled handling from a distance replaces the riskiest part of the job: a human hand touching an unknown object.
3. Day/Night PTZ Camera
Mounted on a raised mast, the Mini ROV carries a Pan-Tilt-Zoom (PTZ) camera with 20x optical zoom and HD video. "Pan" swings the view left and right, "tilt" moves it up and down, and "zoom" brings distant details close without moving the robot.
The camera is rated for both day and night use, so missions are not limited to daylight hours. Optical zoom (rather than digital) keeps the image sharp at full magnification, allowing operators to read labels, inspect wires or examine a package from a safe distance.
Why it matters: Good decisions in EOD depend on good information. A clear, magnified, round-the-clock view lets the team assess a threat thoroughly before committing to any action.
4. Integrated Disruptor Mount
The Mini ROV includes a dedicated mount for a disruptor, a standard EOD tool used to render a suspect device safe remotely. Because the mount is integrated into the platform, the disruptor can be carried forward, aimed and operated by the robot, with no technician present at the target.
Why it matters: Rendering a device safe is the most dangerous stage of any EOD task. Integrating the disruptor on the robot means this stage can be completed entirely by remote control.
5. Secure Wireless Communication
The operator controls the robot and receives its video feed over a secure wireless link. No cable needs to be laid out behind the robot, which removes the risk of a tether snagging on obstacles or limiting how far and where the robot can travel.
Security of the link matters as much as its range. A protected communication channel helps ensure that commands and video reach only the intended operator station.
Why it matters: Reliable, secure control is what makes stand-off operations possible. If the link fails, the mission stops; if it is compromised, the mission is at risk.
6. Multiple Tool & Sensor Options
No two EOD missions are identical. The Mini ROV supports multiple tool and sensor options, allowing it to be configured to the task at hand rather than forcing teams to adapt their mission to a fixed set of equipment.
Typical options on EOD platforms of this class include additional cameras, lighting, specialised grippers and detection sensors. The specific options available for the Mini ROV can be confirmed with our team for your requirement.
Why it matters: A configurable robot gives a single unit the flexibility to cover many mission types, from routine searches to high-risk interventions.
7. Up to 1 km Line-of-Sight Range
The Mini ROV can be operated at distances of up to 1 km in line-of-sight conditions. In practice, this gives command teams the freedom to set up their control point well outside the cordon, behind solid cover.
Line-of-sight range refers to open conditions without major obstructions between the operator and the robot. Inside buildings or around large structures, the effective range will naturally be shorter, as with any wireless system.
Why it matters: Distance is protection. A 1 km operating range provides a generous safety margin for operators and bystanders alike.
8. Weatherproof Rugged Construction
The Mini ROV is built to work outdoors and in demanding environments. Its rugged, weatherproof construction protects the electronics and mechanics against rain, dust and harsh handling, and it is rated to operate from −20°C to +60°C.
Why it matters: Threats do not wait for good weather. A robot that keeps working in heat, cold, dust and rain is a robot that is available when it is needed.
Technical Specifications at a Glance
The numbers below come straight from the Mini ROV catalogue, along with what each one means for teams in the field.
Specification | Value | What it means in the field |
Weight | 47 kg | Light enough for a small team to lift, load into a standard response vehicle and deploy quickly without heavy handling equipment. |
Operating range | Up to 1 km (line of sight) | Operators can stay well outside the danger zone and behind solid cover throughout the mission. |
Climbing ability | Up to 45° | Handles steep ramps, embankments, staircases and inclines found in buildings, airports and industrial sites. |
Operating temperature | −20°C to +60°C | Works in high-altitude cold, desert heat and everything in between. |
Camera | HD PTZ, 20x optical zoom, day/night | Sharp, magnified inspection of a suspect object from a distance, around the clock. |
Mobility | Tracked platform with articulating flippers | Stable traction on rough, slippery or uneven surfaces. |
Communication | Secure wireless | No tether to snag, with a protected control and video link. |
Construction | Weatherproof, rugged | Reliable operation in rain, dust and tough handling conditions. |
Applications: Where the Mini ROV Makes a Difference
The Mini ROV is designed for four main user groups, each with its own operating environment and priorities.
Defence
Armed forces deal with unexploded ordnance, improvised explosive devices and suspect objects in training areas, along convoy routes, at forward bases and in areas cleared after conflict. The Mini ROV's rough-terrain mobility, wide temperature tolerance and 1 km range suit field conditions, while its 47 kg weight keeps it easy to transport and deploy.
Police / Paramilitary
Police bomb squads and paramilitary units respond to unattended bags, suspicious vehicles and threats at public events, government buildings and crowded locations. The robot's compact size lets it work inside buildings, on stairs and in parking areas, and its camera and arm let teams assess and handle objects before anyone approaches. Its secure link and stand-off range help keep officers and the public at a safe distance.
Airports
Airports handle a steady stream of unattended baggage and suspect packages, and every incident can delay flights and disrupt passengers. The Mini ROV can be deployed quickly in terminals, baggage areas, aprons and car parks. Its manoeuvrability on smooth floors and between seating rows, plus 20x zoom for close inspection, helps security teams resolve incidents faster and more safely.
Oil & Gas / PSUs
Refineries, pipelines, power plants and other public sector installations are high-value, high-consequence sites where a threat can have major consequences. The Mini ROV's weatherproof, rugged build and wide operating temperature range suit industrial settings, and its stand-off capability keeps plant personnel and responders clear of danger during inspection or intervention.
A Typical Mission, Step by Step
Here is how the Mini ROV's features come together during a typical response to a suspect object:
Deploy. The team unloads the 47 kg robot from the response vehicle and sets up the control station outside the cordon, up to 1 km away in open conditions.
Approach. The operator drives the robot towards the object on its tracks, using the flippers to climb kerbs, stairs or slopes of up to 45°.
Inspect. The day/night PTZ camera pans, tilts and zooms up to 20x to give the team a detailed view of the object and its surroundings.
Assess. Using the live feed and any additional sensors fitted, the team decides on the safest course of action.
Act. The multi-axis arm handles, opens or relocates the object, or the integrated disruptor is used to render it safe remotely.
Recover. The robot returns to the team, ready for the next task.
Throughout, no team member needs to approach the object.
Why Choose the Mini ROV
Safety first: up to 1 km of stand-off distance keeps operators away from danger.
All-terrain, all-weather: tracks, flippers, 45° climbing and −20°C to +60°C operation.
Complete mission capability: inspection, handling and render-safe tools on one platform.
Compact and deployable: 47 kg and small enough for indoor and confined-space work.
Configurable: multiple tool and sensor options to match each user's needs.

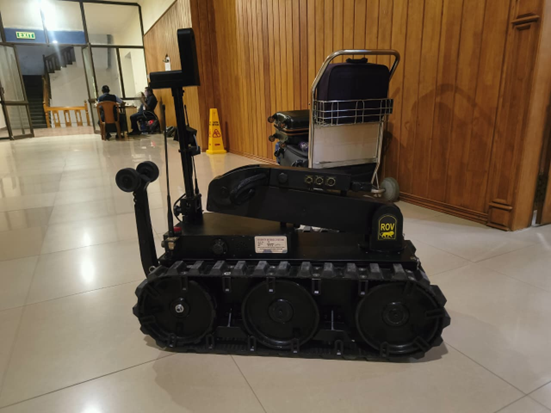

Proven in demonstration: the platform has been demonstrated to security personnel in indoor settings, highlighting its compact footprint and arm reach.
Frequently Asked Questions
What is an EOD robot? An Explosive Ordnance Disposal robot is a remotely operated vehicle that lets bomb-disposal teams inspect, handle and neutralise suspect explosive devices without approaching them in person.
How far away can the operator be? Up to 1 km in line-of-sight conditions. Range indoors or around large structures will be shorter.
Can the Mini ROV climb stairs? Yes. It can climb gradients of up to 45°, which covers most staircases and ramps.
Can it work at night? Yes. The PTZ camera supports both day and night operation.
What weather conditions can it handle? Its weatherproof, rugged construction and −20°C to +60°C operating range let it work outdoors in heat, cold, rain and dust.
Who is it designed for? Defence forces, police and paramilitary units, airport security teams, and oil & gas and other PSU installations.
Can it be customised? Yes. The platform supports multiple tool and sensor options. Contact our team to discuss the configuration that fits your requirement.
Get in Touch
The Mini Remotely Operated Vehicle brings mobility, precision and safety together in a compact, field-ready EOD platform. To request a demonstration, a detailed specification sheet or a configuration tailored to your mission, contact our team today.
